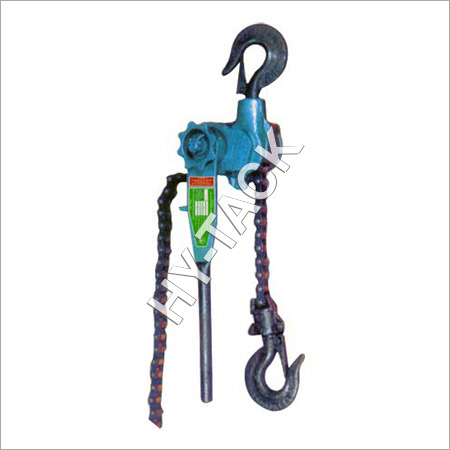

Roller Chain Type (RDSO PART-I APPROVED)

Roller Chain Type  (RDSO PART-I APPROVED)
Roller Chain Type (RDSO PART-I APPROVED)
Product Code : 15
Product Description

Roller Chain Type (RDSO PART-I APPROVED)

We are enlisted amidst the reliable Ratchet Lever Hoist  Importers & Resellers  in India. The Ratchet Lever Hoists, offered by us, have earned us loads of appreciation in the national as well as international market due to the unmatched quality and unsurpassable performance. Our Ratchet Lever Hoists are manufactured as per IS – 11340 specifications.

Features

  • Light weight, compact design, easy to operate
  • High efficiency
  • Warranted for 12 months
  • High impact gear case and brake cover made from Special Alloy Steel
  • Fully enclosed brake system
  • Each hoist is tested to 150% of the rated capacity
  • Superior rubber grip
  • Metal Asbestos for sustaining the load and preventing self-lowering

Construction
  • Housing : The housing of the hoist is made from high graded Cast Iron, designed for maximum strength and maintains alignment under all conditions of service.
  • Gears & Load sprocket : Manufactured from Special Alloy Steel & Heat Treated. Designed for greater strength and surface durability
  • Chain : Roller Chain conforming to IS::2403.
  • Operating Lever (with PVC grip) : Made from Steel conforming to IS: 2062 Grade A.
  • Lubrication : Grease Nipples are provided for lubrication of inner parts, for smooth and trouble free operation
  • Hooks : Forged Steel, conforming to IS: 8610 Grade P. Hooks are provided with safety catches. Zinc Plated as per IS : 1573

Technical Specifications

Model RLH8
RDSO APPROVED
RLH16
RDSO APPROVED
RLH32
RDSO APPROVED
Capacity 0.8 tonne 1.6 tonne 3.2 tonne
A 162 mm 200 mm 220 mm
B 170 mm 185 mm 185 mm
C 31.5 mm 38.0 mm 42.5 mm
H 380 mm 450 mm 530 mm
L 500 mm 500 mm 500 mm
Standard Lift 1.37 m 1.37 m 1.37 m
Effort 15.0 kgf Max 40.0 kgf Max 50.0 Kgf.Max
No. Of Falls 1 1 2
Working load limit 0.8 t Max 1.6 t Max 3.2 t Max
Factor of Safety 4 min 4 min 4 min
Roller Chain ISO 12B-1
19.05mm(3/4")
ISO 16B-1
25.4mm(1 ")
ISO 16B-1
25.4mm(1 ")
Radius of Operating Lever 0.5m Max 0.5m Max 0.5m Max
Weight 13.0 kgs Max 20.0 kgs Max 28.0 kgs Max
