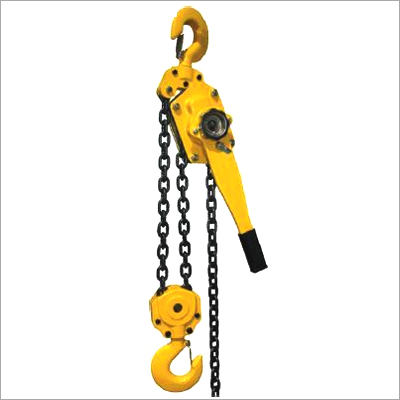

Ratchet Lever Hoist

Ratchet Lever Hoist
Ratchet Lever Hoist
Product Code : 14
Product Description

Fostered with immense years of industry experience and market understanding, we are offering a wide gamut of Ratchet Lever Hoist. This hoist is used for different material handling purposes in different engineering and heavy duty industries. It is manufactured using the best available metal and advanced technology at our vendors' end. A team of quality checkers' tests this Ratchet Lever Hoist on various parameters in order to deliver defect-free range at clients' end.

Features:

  • Optimum load bearing capacity

  • High strength

  • Durability

  • Rust resistance



Ratchet Lever Hoist

  • Light weight, compact design, easy to operate.
  • High efficiency.
  • Warranted for 12 months.
  • High impact gear case and bake cover
  • Fully enclosed brake system.
  • Each hoist is tested to 150% of the rated capacity
  • Superior Rubber grip.

Technical Specification

Model

HY - 0.75

HY - 1.0

HY - 1.5

HY - 2.0

HY - 3.0

HY - 6.0

Capacity (t)

0.75

1.0

1.5

2.0

3.0

6.0

Standard lifting height (M)

1.5

1.5

1.5

1.5

1.5

1.5

Test Load (t)

1.0

1.25

1.875

2.5

3.75

7.5

Effort required to Lift max load (N)

140

140

210

220

330

340

Diameter Pitch Load chain (mm)

6x18

6x18

8x24

8x24

10x30

10x30

Net Weight (kg)

7.0

7.5

11

11

18.5

29

Dimensions (mm)

A

148

148

171

171

190

190

B

87

87

98

98

105

105

C

140

140

165

165

220

250

D

35

5

40

40

50

60

H

310

310

420

420

550

680

L

250

250

405

405

405

405

Packing Dimensions (mm)

33 x 13 x 17

33 x 13 x17

41 x 14 x 19

51 x 14 x 19

52 x 19 x 20

52 x 19 x20

Weight (kgs) for additional mtr lift

0.8

0.8

1.4

1.4

2.2

4.4
