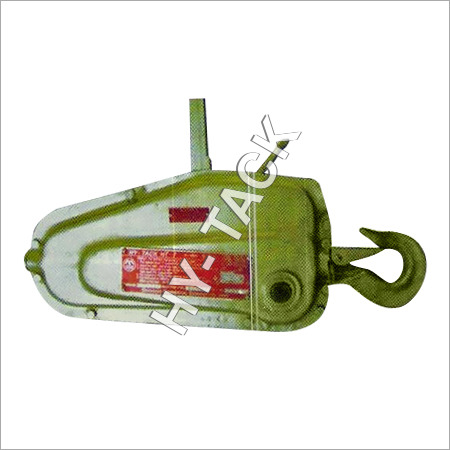

Pulling Lifting Machine

Pulling Lifting Machine
Pulling Lifting Machine
Product Code : HT-7
Product Description

Owing to our in-depth expertise in this domain, we are engaged in offering an extensive range of Pulling Lifting Machine. This machine is widely used in different heavy duty industries for material handling purposes in an efficient manner. Our offered machine is manufactured using utmost quality components and advanced technology at our vendors' end. The offered machine is available in various technical specifications to cater the need of the clients. Additionally, clients can avail this Pulling Lifting Machine at pocket-friendly prices.

Features:

  • Operational efficiency

  • Long service life

  • Minimum maintenance

  • Hassle-free performance

Technical Specifications


Model

HT-7 RDSO App.

HT-13 RDSO App.

HT-20 IS - 5604

HT-35 RDSO App

HT-58 IS - 5604

Dimensions (mm)

515 x 195 x 110

600 x 235 x 130

600 x 235 x150

700 x 400 x 140

810 x 465 x 190

Capacity : S. WL. Lifting
Pulling

0.80 tonne
1.25 tonne

1.6 tonne
2.6 tonne

2.0 tonne
3.0 tonne

3.2 tonne
5.2 tonne

5.0 tonne
8.0 tonne

Velocity of wire rope

45 ± 5mm / stroke

45 ± 5 mm / stroke

50 ± 5 mm / stroke

25 ± 5 mm / stroke

30 ± 5 mm / stroke

[Effort Lifting Capacity
Pulling Capacity

25 kgfMax.
25 kgfMax.

35 kgf Max.
35 kgf Max.

35 kgfMax.
35 kgfMax.

45 kgfMax.
45 kgfMax.

50 kgf Max.
50 kgfMax.

lLength of Telescopic
Operating Handle

530 / 780 mm

760 / 1170 mm

760 / 1170 mm

800 / 1210mm

800 / 121O mm

Factor of Safety

5 min

5 min

5 min

5 min

5 min

Diameter of rope

8.0 mm

11.0 mm

12.0 mm

16.0 mm

20.0 mm

Standard length of rope / fittings

1Om / D - Shackle

20 m / Hook

20m / Hook

10m / D-Shackle

10 m / D -Shackle

iBreaking load of wire rope

41.0 KN min

9.0 t min

9.6 t min.

161.0 KN min

196.0 KN min

lBack slippage of wire rope

10% of total lift / stroke

10% of total lift / stroke

10% of total lift / stroke

15% of total lift / stroke

15% of total lift / stroke

Weight (Approx)***

8.0 kgs Max

18.0 kgs Max

19.0 kgs Max

30.0 kgs Max

47.0 kgs Max



 Exclusive Features :-


 Casing                     :-  Made from Pressed Steel (Galvanized) or Graded Aluminium for light weight with a high Factor of Safety.

Jaw                             :-  Manufactured from Special Alloy steel ,Accurately machined & Heat Treated ,So as to avoid Slippage of Wire Rope Underload.

Jaw Links                    :-  Forged Steel & Heat Treated for greater Strength.

Hooks / Dee - Shackle :-  Alloy Steel Forged and Zinc Plated as Per IS : 1573.

Wire Rope                  :- SuperFlex Plough Steel  as Per IS: 2266 with Heavy Coating as Per IS : 4826.

** Design & Specifications subject to alterations for the sake of improvement without Notice.

All Dimensions are in approx . mm unless otherwise stated.
