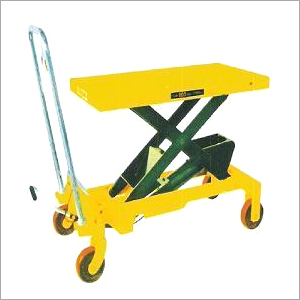

Industrial Scissor Lift Table

Industrial Scissor Lift Table
Industrial Scissor Lift Table
Product Code : HP800
Product Description

We are counted amongst as one of the leading traders and suppliers of excellent quality Industrial Scissor Lift Table. This table is manufactured using the finest quality metals and components under strict industry laid norms at our vendors' end. The offered range of table is available in different specifications as per the requirements of the clients. It is used in various material handling purposes in different industries. In addition to this, our offered Industrial Scissor Lift Table is tested on several parameters in order to make sure that it is defect-free in all aspects.

Features:

  • Corrosion resistant

  • High load bearing capacities

  • Sturdy construction

  • User friendliness



Scissor Lift Table

  • Valuable material handling equipment for use as a feeding table on assembly line.
  • Structural heavy duty steel construction.
  • Easy action foot operated hydraulic lift for raising table top to desired level.
  • Hand operated table decent control.
  • Over load by-pass value protects operator and pump.

Technical Specification

Model


HP 150

HP 150A

HP200

HP300/HP500

HP300A/HP500A

HP800

HPS350

HPB1000

Capacity

(kg)

150

150

200

300/500

300/500

800

350

1000

Max. Lifted Height

H (mm)

740

740

1000

900

900

1000

1300

1000

Min Height of Table

H (mm)

225

225

340

280

340

420

350

380

Table Size

(mm)

700x450x35

740x450x35

1000x500x35

815x500x50

855x500x50

1000x510x669

810x50x52

1016x515x60

Handle Height

A (mm)

935

935

1055

1000

970

996

970

960

Over all Length

B (mm)

770

830

1120

935

925

1150

960

1170

Foot pedal cycles to max height


<25

<25

<25

<32/<45

<32/<45

<70

<60

<55

Wheel Diameter

D (mm)

100

100

200

127

127

150

127

150

Weight approx

(kg)

44

41

600

75/85

75/85

115

110

115

Packing

(mm)

820x480x265

880x480x265

1140x620x460

960x530x420

960x530x390

1190x630x460

1010x530x390

1190x630x420

  • Designs and specifications subject to alterations for sake of improvement without notice
  • All dimensions are in mm unless otherwise specified.
  • Copy of this literature or any part of it, is strictty reserved.
