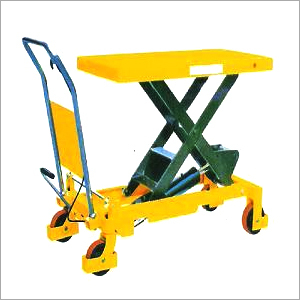

Heavy Scissor Lift Table

Heavy Scissor Lift Table
Heavy Scissor Lift Table
Product Code : HPB1000
Product Description
Scissor Lift Table
  • Valuable material handling equipment for use as a feeding table on assembly line.
  • Structural heavy duty steel construction.
  • Easy action foot operated hydraulic lift for raising table top to desired level.
  • Hand operated table decent control.
  • Over load by-pass value protects operator and pump.

Technical Specification

Model


HP 150

HP 150A

HP200

HP300/HP500

HP300A/HP500A

HP800

HPS350

HPB1000

Capacity

(kg)

150

150

200

300/500

300/500

800

350

1000

Max. Lifted Height

H (mm)

740

740

1000

900

900

1000

1300

1000

Min Height of Table

H (mm)

225

225

340

280

340

420

350

380

Table Size

(mm)

700x450x35

740x450x35

1000x500x35

815x500x50

855x500x50

1000x510x669

810x50x52

1016x515x60

Handle Height

A (mm)

935

935

1055

1000

970

996

970

960

Over all Length

B (mm)

770

830

1120

935

925

1150

960

1170

Foot pedal cycles to max height


<25

<25

<25

<32/<45

<32/<45

<70

<60

<55

Wheel Diameter

D (mm)

100

100

200

127

127

150

127

150

Weight approx

(kg)

44

41

600

75/85

75/85

115

110

115

Packing

(mm)

820x480x265

880x480x265

1140x620x460

960x530x420

960x530x390

1190x630x460

1010x530x390

1190x630x420

  • Designs and specifications subject to alterations for sake of improvement without notice
  • All dimensions are in mm unless otherwise specified.
  • Copy of this literature or any part of it, is strictty reserved.
