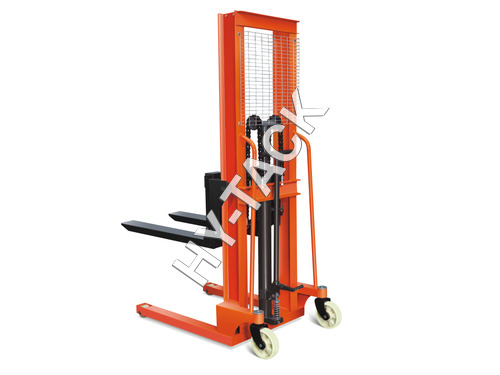

Hand Stacker

Hand Stacker
Hand Stacker
Product Code : 01
Product Description

As a well-known trader and supplier in this domain, we are offering high quality Hand Stacker. The offered range of stacker is manufactured using the best quality metal and modern technology at our reliable vendors' end. This is available in various specifications so as to suit the material handling need of the clients. Our offered stacker is tested on several parameters in order to remove all the possible flaws. Apart from this, clients can avail this Hand Stacker within promised period of time.

Features:

  • Rigid construction

  • Can carry heavy loads

  • Sturdy design

  • Optimum finish

Model CTY-A1.0 CTY-A2.0 CTY-A3.0
Capacity(kg) 1000 2000 3000
Max.lifting height(mm) 1600 1600 1600
Lowered height of forks(mm) 85 85 100
Fork length (mm) 900 900 1000
Adjustable Width of fork(mm) 230-580 270-680 320-770
Lifting speed(mm/stroke) 20 14 10
lowering speed(mm/stroke) Controllable Controllable Controllable
Outer width of front legs (mm) 750 750 750
Operation power of crank(kg) 24 32 40
Min.refuel volume of fuel tank(L) 1.6 2.0 3.0
Front wheel size(mm) 85x50 85x50 100x50
Rear wheel size(mm) 180x50 180x50 180x50
Overall size(mm) 2040x750x1420 2050x750x1480 2050x800x1650
Self Weight(kg) 115 180 280
