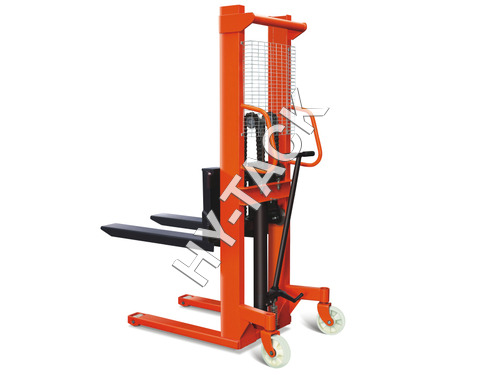

Hand Stacker

Hand Stacker
Hand Stacker
Product Code : Model CTY D
Product Description
Hand stacker is hand push & hand lift stacker which provides cost-effective handling for both vehicle loading and production areas. Easy maintenance and low running costs.
ModelCTY-D1.0CTY-D2.0
Capacity(kg)10002000
Max.lifting height(mm)16001600
Lowered height of forks(mm)9090
Fork length (mm)900900
Adjustable Width of fork(mm)310-740350-740
Lifting speed(mm/stroke)2014
lowering speed(mm/stroke)ControllableControllable
Outer width of front legs (mm)620620
Operation power of crank(kg)2432
Min.refuel volume of fuel tank(L)1.62.0
Front wheel size(mm)φ75x52φ75x70
Rear wheel size(mm)φ180x50φ180x50
Overall size(mm)2040x790x14502050x830x1500
Self Weight(kg)160260
