Chain Pulley Block

Chain Pulley Block
Chain Pulley Block
Product Code : 02
Product Description

Chain Pulley Block

We are reputed as one of the trusted Chain Pulley Blocks Importer and Reseller in India. The Chain Pulley Blocks, offered by us, have attracted various industrial sectors to place repeated orders for the Chain Pulley Blocks. Additionally, customers are eased with the availability of the Chain Pulley Blocks in varied specifications as per the requirements of the applications. We also provide Electric Chain Hoist.

Attributes

  • Reliable & compact
  • Robust construction
  • Light weight
  • Minimum effort for lifting maximum load
  • Strong Alloy Load Chain
  • Fully machined Fit Wheels
  • Minimum headroom
  • Cast steel safety latches
  • Lower hook complete with thrust race
  • Galvanized hand chain as standard
  • Durable baked enamel pain protection
Advantages
  • Easy in operation
  • Premium quality parts and components used
  • Conforms to international standards
  • Available in varied specifications
  • Easy availability of spare parts

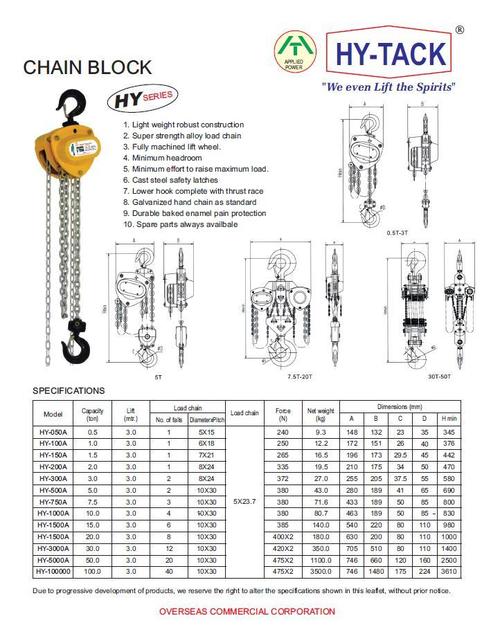

Specifications

Model Capacity (ton) Lift. Mtr. Load chain Load chain Force (N) Net weight (kg) Dimensions (mm)
No.of falls Diameter x Pitc A B C D H min
HY - 050 A 0.5 3.0 1 5 x 15 5 x 23.7 240 9.3 148 132 23 35 345
HY - 100 A 1.0 3.0 1 6 x 18 250 12.2 172 151 26 40 376
HY - 150 A 1.5 0.0 1 7 x 21 265 16.5 196 173 29.5 45 442
HY - 200 A 2.0 3.0 1 8 x 24 335 19.5 210 175 34 50 470
HY - 300 A 3.0 3.0 2 8 x 24 372 27 255 205 37.5 55 580
HY - 500 A 5.0 3.0 2 10 x 30 380 43 280 189 41 65 690
HY - 750 A 7.5 3.0 3 10 x 30 380 71.6 433 189 50 85 800
HY - 1000 A 10.0 3.0 4 10 x 30 380 80.7 463 189 50 85 830
HY - 1500 A 15.0 3.0 6 10 x 30 385 140 540 220 80 110 980
HY - 1500 A 20.0 3.0 8 10 x 30 400 x 2 180 630 200 80 110 1000
HY - 3000 A 30.0 3.0 12 10 x 30 420 x 2 350 705 510 80 110 1400
HY - 5000 A 50.0 3.0 20 10 x 30 475 x 2 1100 746 660 120 160 2500
HY - 100000 100.0 3.0 40 10 x 30 475 x 2 3500 746 1480 175 224 3610

Technical Specifications

Model ZXI-0.5A ZXI-1A ZXI-1.5A ZXI-2A ZXI-3A ZXI-5A ZXI-10A ZXI-15A ZXI-20A
Rated load (T) 0.5 1 1.5 2 3 5 10 15 20
Standard lift (m) 3 3 3 3 3 3 3 3 3
Test load (T) 0.75 1.5 2.25 3 4.5 7.5 15 22.5 30
Efforts required at capacity (N) 262 324 332 324 332 504 504 504 504
Diameter of load chain (mm) 5 6 6 8 8 10 10 10 10
No. of falls 1 1 1 2 2 2 4 6 8
Dimensions (mm) A 115 131 142 131 142 171 171 204 215
B 127 156 180 156 180 230 410 410 645
C 270 334 399 435 520 660 700 950 1075
Net weight (kg) 7 10 15 16 22 37 68 125 160
Extra weight per meter of extra lift (kg) 1.5 1.8 2 2.7 3.2 5.3 9.8 14.7 19.6

Click here for more details.
