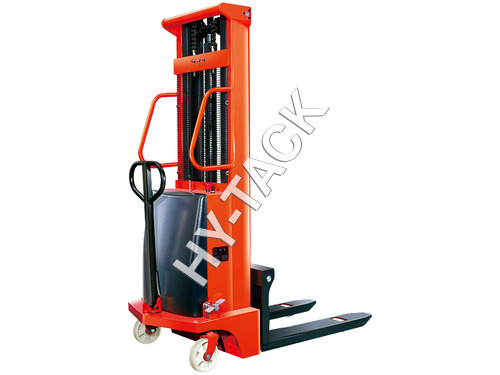

Semi Electric Stacker

 Semi Electric Stacker
Semi Electric Stacker
Product Code : 01
Product Description

We are a remarkable entity, engaged in offering a superior assortment of Semi Electric Stacker. The offered stacker is widely demanded among the clients for their optimum usage in several material handling purposes. Our offered stacker is manufactured by making use of premium quality metal and other allied material by employing sophisticated technology at our trustworthy vendors' end. We offer this Semi Electric Stacker in various specifications as per the need of the clients.

Features:

  • Robustness

  • Durability

  • Compact design

  • Rust resistance

Model CTD1.0/16 CTD1.0/20 CTD1.0/25
Capacity(kg) 1000 1000 1000
Max.lifting height(mm) 1600 2000 2500
Fork length(mm) 1000 1000 1000
Min.fork height(mm) 90 90 90
Load eenter(mm) 500 500 500
Voltage AC220V AC220V AC220V
Motor power 1.6KW 1.6KW 1.6KW
Outer width of front legs(mm) 635 635 635
Inner width of legs(mm) 395 395 395
Adjustable Width of fork(mm) 360-690 360-690 360-690
Rear wheel size(mm) 180X50 180x50 180x50
Front wheel size(mm) 80X70 80x70 80x70
Self Weight(kg) 312 325 340
Extended height(mm) 2080 1580 1830
Closed height H3(mm) 2080 2500 3000

Model CTD1.0/30/33 CTD1.5/16 CTD1.5/20
Capacity(kg) 1000 1500 1500
Max.lifting height(mm) 3000/3300 1600 2000
Fork length(mm) 1000 1000 1000
Min.fork height(mm) 90 90 90
Load eenter(mm) 500 500 500
Voltage AC 220V AC220V AC220V
Motor power 1.6KW 1.6KW 1.6KW
Outer width of front legs(mm) 635 635 635
Inner width of legs(mm) 395 395 395
Adjustable Width of fork(mm) 360-690 360-690 360-690
Rear wheel size(mm) 180x50 180x50 180x50
Front wheel size(mm) 80x70 80x93 80x93
Self Weight(kg) 355/370 387 405
Extended height(mm) 2080/2230 2080 1580
Closed height H3(mm) 3500/3800 2080 2500


Model

CTD1.5/25

CTD1.5/30/33

CTD2.0/16

Capacity(kg)

1500

1500

2000

Max.lifting height(mm)

2500

3000/3300

1600

Fork length(mm)

1000

1000

1000

Min.fork height(mm)

90

90

90

Load eenter(mm)

500

500

500

Voltage

AC220V

AC220V

AC220V

Motor power

1.6KW

1.6KW

1.6KW

Outer width of front legs(mm)

635

635

635

Inner width of legs(mm)

395

395

395

Adjustable Width of fork(mm)

360-690

360-690

360-690

Rear wheel size(mm)

180x50

180x50

180x50

Front wheel size(mm)

80x93

80x93

80x93

Self Weight(kg)

425

445/465

397

Extended height(mm)

1830

2080/2230

2080

Closed height H3(mm)

3000

3500/3800

2080
